Donald St. Resurfacing

Last week, Bike Ottawa sent a letter to the City with some recommendations concerning plans to resurface Donald Street.

Increasingly, the City seems to attempt to incorporate bicycle infrastructure when resurfacing roadways. (A couple other examples: Richmond Road and Kirkwood Avenue.) This is a good development. We’ve come to expect cycle tracks  only with renewals—that is, where a road is being dug up for other work, like sewers. Given how infrequently renewals occur, this means that important corridors can remain without infrastructure for years, even decades. (See Hazeldean/Robertson/Baseline.) Moreover, the result is a piecemeal approach that breaks a fundamental law for bicycle infrastructure: connectivity.

Unfortunately, the City isn’t going far enough yet. With resurfacing (“pave and shave”) projects, the City installs on-road painted bike lanes. There are numerous reasons why this is inadequate. Paint won’t protect you from an out-of-control car. Paint won’t prevent people from parking their car in the lane, forcing people biking into traffic. Snow gets plowed into on-road lanes, making painted lanes seasonal. The list goes on. This is why Bike Ottawa recommends cycle tracks—facilities that are separated from car traffic and physically protected.

Fortunately, there’s a simple solution: pinned curbs, or Qwick Curbs. These can be added without changing the permanent curb line—which is normally left untouched in a resurfacing—and still allow maintenance staff through. The physical barrier these offer make all the difference in terms of protection, comfort, and keeping the facility clear.

Image: The Laurier Bikeway just west of Metcalfe showing pinned curbs. (Source: Google Maps.)
Elgin St: Qwick Kerbs up ahead and an illegally parked truck.

Another issue that arises with the City’s plans for resurfacing is that they eliminate cycling facilities at intersections in order to add car lanes. (See an example below at Vanier Parkway.) If it looks like the City is prioritizing the convenience of people driving over the safety of vulnerable road users, you’re right. It’s a bit baffling to us how, in 2022, the City of Ottawa is still working out its priorities. (You can help, though! Submit feedback on the Transportation Master Plan Update before March 31.)

The City’s proposed design for Donald east of Vanier Parkway. The bicycle lanes on the right disappear heading to the left, while a car lane is added and the existing two are widened. PDF here.

We should also note that there are no plans to improve the intersection in the image above, Donald and Vanier Parkway. This is disappointing: this intersection was one of 34 that the City designated in a 2020 report “as having the highest risk of potential vehicle/cyclist conflict.” In fact, this intersection even made it to the cover of that report!

As for the rest of our recommendations, we leave them to you to read about below (text version follows):

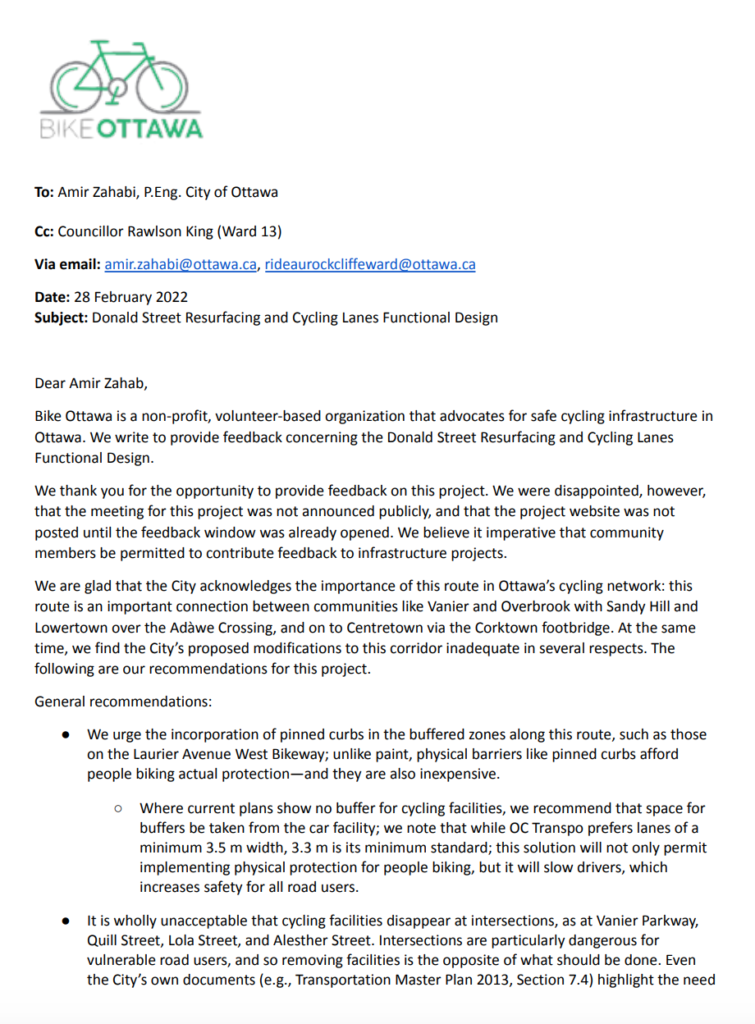

To: Amir Zahabi, P.Eng. City of Ottawa
Cc: Councillor Rawlson King (Ward 13)
Via email: amir.zahabi@ottawa.ca, rideaurockcliffeward@ottawa.ca
Date: 28 February 2022
Subject: Donald Street Resurfacing and Cycling Lanes Functional Design

Dear Amir Zahab,


Bike Ottawa is a non-profit, volunteer-based organization that advocates for safe cycling infrastructure in
Ottawa. We write to provide feedback concerning the Donald Street Resurfacing and Cycling Lanes
Functional Design.


We thank you for the opportunity to provide feedback on this project. We were disappointed, however,
that the meeting for this project was not announced publicly, and that the project website was not
posted until the feedback window was already opened. We believe it imperative that community
members be permitted to contribute feedback to infrastructure projects.
We are glad that the City acknowledges the importance of this route in Ottawa’s cycling network: this
route is an important connection between communities like Vanier and Overbrook with Sandy Hill and
Lowertown over the Adàwe Crossing, and on to Centretown via the Corktown footbridge. At the same
time, we find the City’s proposed modifications to this corridor inadequate in several respects. The
following are our recommendations for this project.


General recommendations:
● We urge the incorporation of pinned curbs in the buffered zones along this route, such as those
on the Laurier Avenue West Bikeway; unlike paint, physical barriers like pinned curbs afford
people biking actual protection—and they are also inexpensive.
○ Where current plans show no buffer for cycling facilities, we recommend that space for
buffers be taken from the car facility; we note that while OC Transpo prefers lanes of a
minimum 3.5 m width, 3.3 m is its minimum standard; this solution will not only permit
implementing physical protection for people biking, but it will slow drivers, which
increases safety for all road users.

● It is wholly unacceptable that cycling facilities disappear at intersections, as at Vanier Parkway,
Quill Street, Lola Street, and Alesther Street. Intersections are particularly dangerous for
vulnerable road users, and so removing facilities is the opposite of what should be done. Even

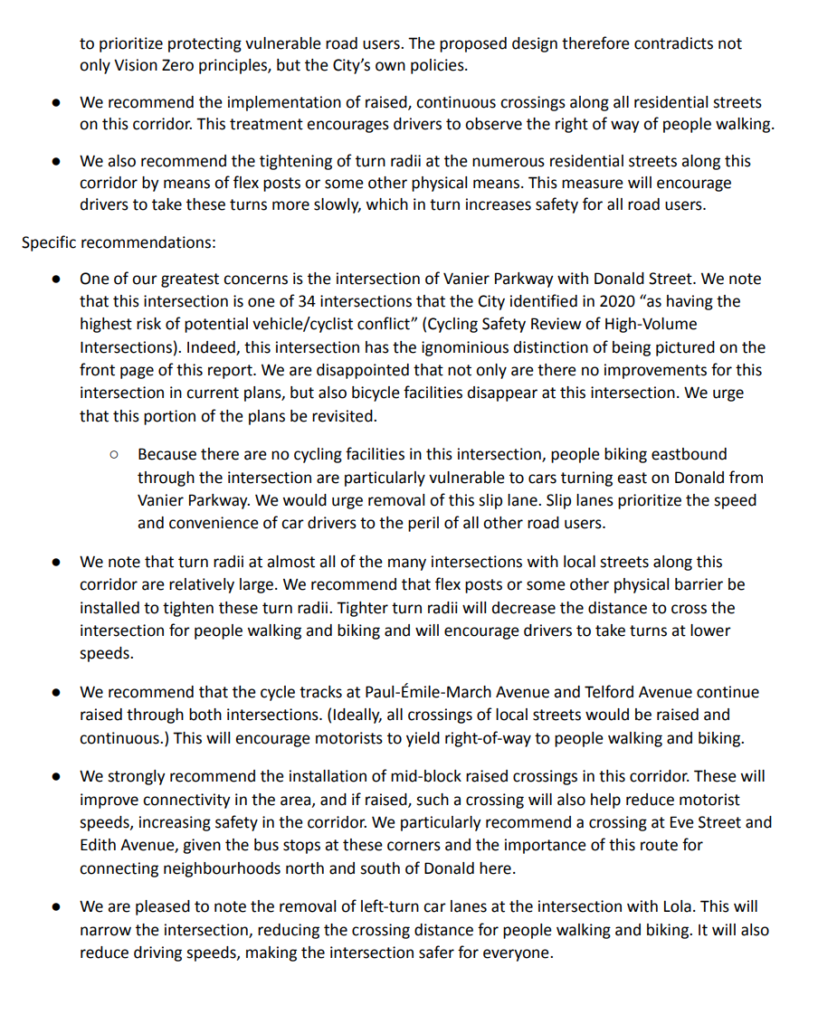

the City’s own documents (e.g., Transportation Master Plan 2013, Section 7.4) highlight the need to prioritize protecting vulnerable road users. The proposed design therefore contradicts not only Vision Zero principles, but the City’s own policies.


● We recommend the implementation of raised, continuous crossings along all residential streets
on this corridor. This treatment encourages drivers to observe the right of way of people walking.


● We also recommend the tightening of turn radii at the numerous residential streets along this
corridor by means of flex posts or some other physical means. This measure will encourage
drivers to take these turns more slowly, which in turn increases safety for all road users.

Specific recommendations:

● One of our greatest concerns is the intersection of Vanier Parkway with Donald Street. We note
that this intersection is one of 34 intersections that the City identified in 2020 “as having the
highest risk of potential vehicle/cyclist conflict” (Cycling Safety Review of High-Volume
Intersections). Indeed, this intersection has the ignominious distinction of being pictured on the
front page of this report. We are disappointed that not only are there no improvements for this
intersection in current plans, but also bicycle facilities disappear at this intersection. We urge
that this portion of the plans be revisited.
○ Because there are no cycling facilities in this intersection, people biking eastbound
through the intersection are particularly vulnerable to cars turning east on Donald from
Vanier Parkway. We would urge removal of this slip lane. Slip lanes prioritize the speed
and convenience of car drivers to the peril of all other road users.

● We note that turn radii at almost all of the many intersections with local streets along this
corridor are relatively large. We recommend that flex posts or some other physical barrier be
installed to tighten these turn radii. Tighter turn radii will decrease the distance to cross the
intersection for people walking and biking and will encourage drivers to take turns at lower
speeds.


● We recommend that the cycle tracks at Paul-Émile-March Avenue and Telford Avenue continue
raised through both intersections. (Ideally, all crossings of local streets would be raised and
continuous.) This will encourage motorists to yield right-of-way to people walking and biking.


● We strongly recommend the installation of mid-block raised crossings in this corridor. These will
improve connectivity in the area, and if raised, such a crossing will also help reduce motorist
speeds, increasing safety in the corridor. We particularly recommend a crossing at Eve Street and
Edith Avenue, given the bus stops at these corners and the importance of this route for
connecting neighbourhoods north and south of Donald here.


● We are pleased to note the removal of left-turn car lanes at the intersection with Lola. This will
narrow the intersection, reducing the crossing distance for people walking and biking. It will also
reduce driving speeds, making the intersection safer for everyone.

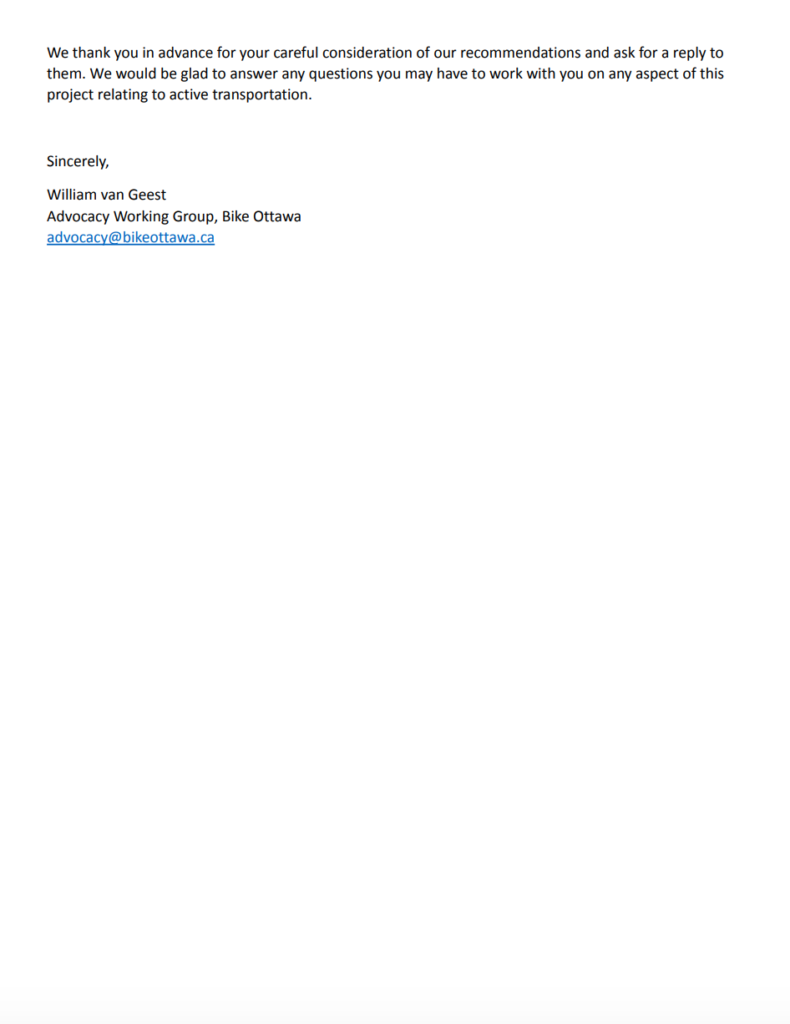

We thank you in advance for your careful consideration of our recommendations and ask for a reply to
them. We would be glad to answer any questions you may have to work with you on any aspect of this
project relating to active transportation.

Sincerely,
William van Geest
Advocacy Working Group, Bike Ottawa
advocacy@bikeottawa.ca
